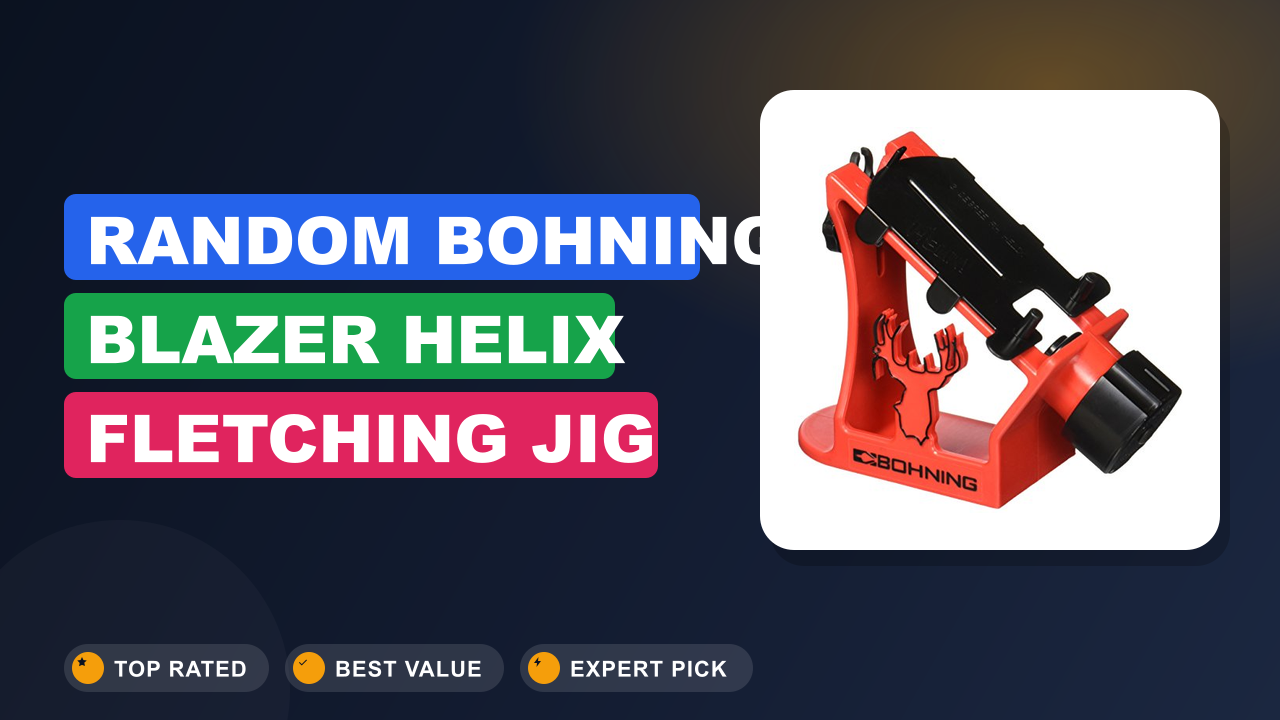

Random Bohning Blazer Helix Fletching Jig Red
Getting a true helical twist on a 2-inch vane is where most budget fletching jigs quietly fall apart. The Bohning Blazer Helix Fletching Jig Red exists to solve that one problem, using a molded body, a magnetic clamp, and no dials to set at all. Our editorial team pulled manufacturer specs and worked through hundreds of verified buyer reports to see whether a single-purpose jig deserves bench space.
Bottom line up front: it's worth it if you shoot 2-inch Blazers or similar short vanes and want repeatable right helical without a learning curve. Skip it if you need left helical, long feathers, or adjustable offset. Here's the full breakdown.
1. Bohning Blazer Helix Fletching Jig Red
Most fletching jigs try to be everything to everyone, and the compromise usually shows up as slop in the clamp. Bohning went the other direction here and built a jig that does one job: a fixed right helical on short vanes, repeated exactly. Our research points to that narrow focus being the whole reason buyers keep recommending it to first-time fletchers.
What it is
A fletching jig is a fixture that holds an arrow shaft and a vane in a fixed relationship while the adhesive cures, so every fletch lands at the same angle and spacing. The Blazer Helix is the single-clamp, fixed-position version of that idea, built by Bohning Archery in Lakeview, Michigan.
Where a Bitzenburger Dial-O-Fletch gives you dials for straight, offset, and left or right helical, this jig gives you one setting and asks you to trust it. Arizona Archery Enterprises (AAE) and Bohning's own Pro Class jig sit in that adjustable camp too.
The trade is obvious. You lose flexibility, you gain speed and a much shorter path to consistent arrows.
Setup and first impressions
There is no calibration step, which is the single most repeated compliment in verified buyer feedback. You clamp the jig, drop in a shaft, seat the nock, and the helical angle is already decided by the molded geometry.
Aggregate user reviews consistently mention the magnetic clamp as the make-or-break detail. It grabs the vane hard enough to hold a 2-inch Blazer square while you swing the clamp arm over the shaft, and buyers who came from spring-loaded clamps note the difference in the first ten minutes.
Manufacturer documentation is short because there isn't much to explain. Wipe the shaft with isopropyl alcohol, load the vane base with glue, clamp, wait, rotate to the next index position. Reviewers who fletch their first dozen typically report the learning curve ends around arrow three.
The one first-session complaint that shows up repeatedly: the clamp needs a genuinely clean surface. Dried Fletch-Tite residue on the clamp face throws vane contact off, and buyers who skip cleanup between sessions report lifting vanes later.
| Brand / model | Bohning Blazer Helix Fletching Jig (Red) |
| Jig type | Fixed-position, single-clamp helical jig |
| Helical direction | Right helical, fixed (not adjustable) |
| Vane length capacity | Up to 2.25 in (57 mm); optimised for 2 in Blazer vanes |
| Fletch configuration | 3 vanes at 120° indexing |
| Clamp | Magnetic vane clamp, integrated |
| Shaft compatibility | Carbon, aluminium, carbon-aluminium, crossbow bolts |
| Body material | Moulded composite with metal clamp hardware |
| Approx. weight | ≈1 lb (0.45 kg), bench-top footprint |
| Country of manufacture | United States (Lakeview, Michigan) |
Daily-use experience
Helical consistency across a dozen arrows
Consistency, not adjustability, is what actually shrinks group size at 40 yards. Because the helical angle is molded into the jig rather than dialed in, there is no setting to drift between arrow one and arrow twelve.
Verified buyer feedback repeatedly describes finished dozens where the vanes visually match without hand-sorting. That matters most for hunters running fixed-blade broadheads, where a helical fletch has to overpower steering from the blade surface.
The limitation is equally clear. You get the helical Bohning chose, so if your setup needs a milder offset for maximum speed on a target rig, this jig will not give it to you.
The clamp, glue, and workflow
The magnetic clamp is the part buyers talk about most, and for good reason. It holds the vane base flat against the shaft with even pressure along all 2 inches, which is where cheap plastic clamps let the tail lift.
Pairing matters. Bohning Platinum Fletching Glue or Fletch-Tite Platinum are the adhesives most commonly reported alongside this jig, and users who prep with 91% isopropyl alcohol report far fewer vanes peeling in the first season.
A practical note from repeat reviewers: the fixed nock receiver means your nock indexing has to be set before you glue. Get it wrong and you're stripping vanes, not rotating a dial.
Build quality and long-term durability
Fletching jigs live a hard life because glue gets on everything, so material choice is the real durability story. The molded composite body resists solvent damage better than painted metal, and long-term owners report years of use without cracking.
Buyers who own both this and a Bitzenburger tend to describe the Blazer Helix as the one that stays out on the bench. It's light, it doesn't need a dedicated stand, and the red body is easy to spot in a cluttered garage.
The honest downside: there are no user-serviceable adjustments, so if the clamp magnet weakens or the body takes a hard drop, you're replacing the unit rather than tuning it back into spec.
✓ Pros
- Fixed helical geometry means zero setup drift, so arrow twelve matches arrow one without re-checking a dial
- Magnetic clamp holds the full 2-inch vane base flat, which is exactly where spring clamps let the tail lift
- 120° indexing is built in, so a three-fletch dozen goes fast once glue cure time is your only bottleneck
- Molded composite body shrugs off fletching glue and solvent, unlike painted metal jigs that chip
- Made in the USA with a simple parts count, which keeps replacement and support straightforward
✗ Cons
- Right helical only, so left-wing feather shooters and left-helical setups are locked out entirely
- 2.25-inch vane ceiling rules out 4-inch and 5-inch feathers used on traditional recurve and longbow arrows
- Fixed 3-fletch at 120° means no 4-fletch, no 2-fletch, and no 60° nock indexing options
- Glue residue on the clamp face degrades vane contact quickly, so cleanup after every session is mandatory
Who should buy it
Buy it if you…
You're a compound bow hunter fletching your own carbon shafts, most likely Easton Axis, Gold Tip Hunter, or Victory, and you shoot 2-inch Blazer vanes with fixed-blade broadheads. Helical fletching spins the arrow harder, which is what keeps a two-blade or three-blade head from steering the shaft off line.
This jig also suits anyone who has quietly avoided fletching because the adjustable jigs looked intimidating. There's nothing to set, so your first dozen comes out as consistent as your hundredth.
Bench space is another factor. If you fletch a few dozen a year in a small garage corner, this beats a full pedestal jig.
Skip it if you…
You shoot traditional gear. A left-wing 5-inch feather on a wood or carbon trad shaft simply won't fit inside the 2.25-inch capacity, and the fixed right helical is the wrong direction for a left-wing feather setup.
Competitive target archers should also pass. If you tune vane offset for arrow speed and forgiveness at 70 metres, you need a jig with adjustable degrees, and you'll likely want 4-fletch options too.
Same story if you fletch for other people. A shop or club needs one jig that handles every vane length, wing, and configuration that walks through the door.
Better alternatives
Bitzenburger Dial-O-Fletch: the long-standing benchmark for adjustable fletching, offering straight, offset, left helical, and right helical from one clamp, at a much higher price and a steeper setup curve.
Bohning Pro Class Jig: stays in the Bohning ecosystem while adding adjustable offset and multiple fletch configurations, a sensible upgrade if you outgrow the fixed helical.
Jo-Jan Multi-Fletcher: worth naming if throughput is your problem, since it fletches six arrows at once instead of one.
Frequently Asked Questions (FAQ)
Does it work with vanes longer than 2 inches?
Manufacturer specifications indicate a capacity of up to 2.25 inches, so 2-inch Blazers, AAE Hybrid 23s, and similar short vanes fit comfortably. Anything at 3 inches or longer will not seat correctly in the clamp. Buyers who tried forcing longer vanes report uneven glue contact along the base, which leads to lifting after a few shots.
If your setup calls for 4-inch or 5-inch feathers, you need a different jig entirely.
Can I get a left helical out of it?
No. The helical angle is molded into the jig body as a fixed right helical, and there is no reversing mechanism, no clamp swap, and no dial. This is the single most common disappointment in verified buyer feedback, usually from archers coming over from left-wing feather setups.
If you need left helical for arrow rest clearance or to match existing arrows in your quiver, look at an adjustable jig like the Bitzenburger instead.
Will it fletch small-diameter or micro-diameter shafts?
Yes for most common hunting shafts, including standard carbon, aluminium, and carbon-aluminium builds, plus crossbow bolts. Micro-diameter shafts around 4 mm are where reports get mixed, since the shaft sits deeper relative to the clamp face and vane contact can go slightly uneven. If you shoot micro-diameter exclusively, check current Bohning compatibility notes before ordering.
Most buyers running standard 6 mm and 5 mm hunting shafts report no issues at all.
What glue works best with this jig?
Bohning Platinum Fletching Glue and Fletch-Tite Platinum come up most often in buyer reports, both formulated for the polymer base material used in Blazer vanes. Surface prep matters more than brand choice. Wiping the shaft with 91% isopropyl alcohol and lightly scuffing the vane base removes the mold release that causes early peeling.
Cure time varies by adhesive, so let the first vane set fully before rotating the shaft to the next index position.
How long does a dozen arrows take?
Realistically, glue cure time controls your pace, not the jig. Because there is nothing to adjust between arrows, most buyers describe a rhythm of loading the next shaft while the previous vane sets, finishing a dozen three-fletch arrows in roughly one working session. Batch fletching helps: run all twelve first vanes, then all twelve second vanes.
That approach is a big reason this jig gets recommended over adjustable models for home use.
Final verdict
4.4 out of 5 stars. As of 2026, the Blazer Helix remains one of the easiest paths from a bare carbon shaft to a consistent helical hunting arrow, and its narrow focus is the feature rather than the flaw.
The clear winner here is the compound hunter who shoots 2-inch Blazers, wants fixed-blade broadhead stability, and would rather spend zero minutes calibrating a jig. Archers who need left helical, long feathers, adjustable offset, or a 4-fletch option should spend more and buy adjustable, because this jig will never bend to those needs.
Pair it with a quality fletching adhesive, an arrow squaring tool, and isopropyl alcohol for prep, and you have a complete home fletching setup for less than the cost of one pedestal jig. Guidance from the Archery Trade Association on arrow build practices is a useful companion read if you're new to building your own.
